Agricultural guidance system geotrack lite is the most inexpensive farming navigator with the field area measurement function. Perfect for small agricultural enterprises where you need to cultivate small areas of land. Stable accuracy of the system using a free satellite signal with a 5 Hz receiver GM SMART. The updated model of the farming navigator geotrack lite is equipped with a tablet with Android OS and GPS/GLONASS/GALILEO/BEIDOU receiver GM SMART, which ensures the accuracy of parallel driving at the level of 15 cm with SMOOTH mode. If necessary, the GM SMART receiver supports unlocking to RTK L1/L2 accuracy, during operation from a base station or a CORS network provider of GNSS signal corrections, the accuracy can be achieved at the level of 2.5 cm. Geotrack lite is an indispensable agricultural navigator for a small modern farm. All the necessary information is visible on a large bright screen, the diagonal of which is 8.7 inches (22.1 cm). Geotrack lite can be used on high-speed agricultural machinery, as well as for aerial processing of agricultural fields.
- Accuracy: 15 cm (SMOOTH mode)
- Accuracy: 2.5 cm (RTK mode)
- Determining of treated area
- Area measuring by field line
- Treated area filling
- Driving speed displaying
- Passed length displaying
- Visual cue
- Voice cue
- Back to the initial point
- PAUSE button for clearing
Description
Parallel driving system Geotrack lite was designed for driving of agricultural machinery in a field as to prevent the occurrence of unprocessed areas and overlaps. Work can be carried out at night, in fog, in dusty conditions and poor visibility with a help of Geotrack lite system. Big display will show the location of agricultural machinery in a field, its real-time moving. When impossible to determine the field boundary it is enough to drive around field contour to record the field boundary. And then you need to mark out the line template on which mechanic works. GPS guidance system Geotrack lite allows to save treated areas to file and return to it any day. System is suitable for work with high-speed machinery on high speeds. Basic update rate is 5 Hz (5 times per second). Saved data can be transferred to the computer to see it on Google Maps. System is multipurpose and fast mounting to other machinery. Geotrack lite is your best GPS guidance system!
Interface

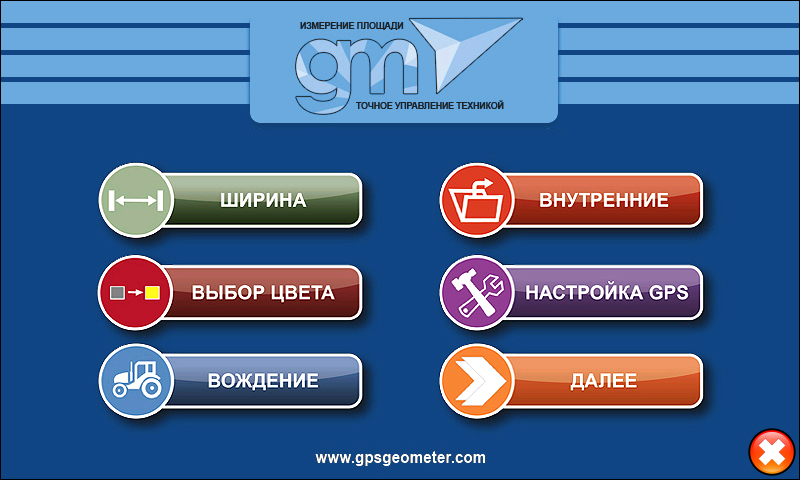

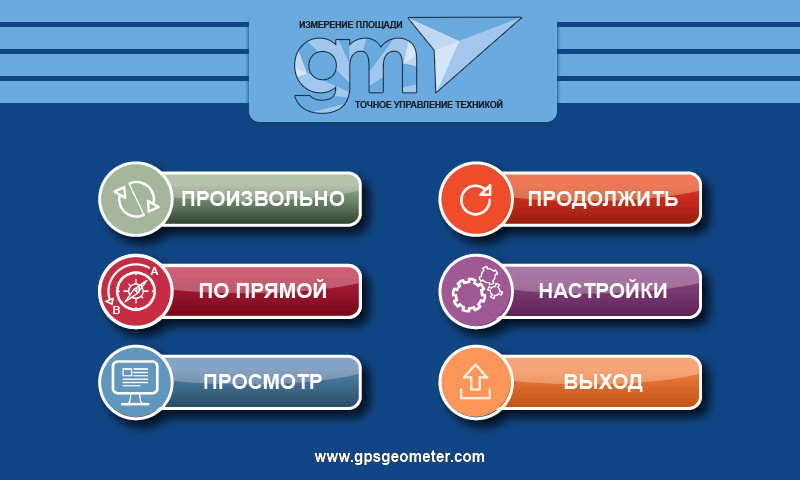

Parallel driving system Geotrack lite is very simple in use. It is enough to set operating width of using equipment for starting work. All controls on the display have big size and good visible. Detailed user manual attached to the kit.
Video
View short videos with parallel driving examples. The tool width is set to 9 meters at driving on "FREE" mode. The tool width is set to 4 meters at driving on "GUIDE" mode. As you see the system can be operated with wide-cut aggregates and also with small tools.
Buy
To buy the Parallel driving system Geotrack lite please use checkout button below or contact us by phone or via the feedback form:
Buy now 770 USDUkraine
